Plan a complete production line
Match cleaning, crushing, roasting, pressing, filtering and filling equipment.
Open page
Notice: The frame is made of integrated molded steel plate cutting, with higher yield strength and stronger pressure bearing capacity
Series Overview
Get Price & Quote / Official Website
Need cold-press pricing, capacity planning, or turnkey support?
Purchase Decision Snapshot
- Recommended for: Large projects and flagship cold-press lines that need the highest pressure level in the series.
- Recommended process: Cold pressing after crushing, with optional low-temperature drying before pressing.
- Material focus: Walnut, sea buckthorn, perilla seed, coconut, tea seed, hemp seed, flaxseed, almond, pine nut, pumpkin seed, waste clay, and activated carbon decolorizer.

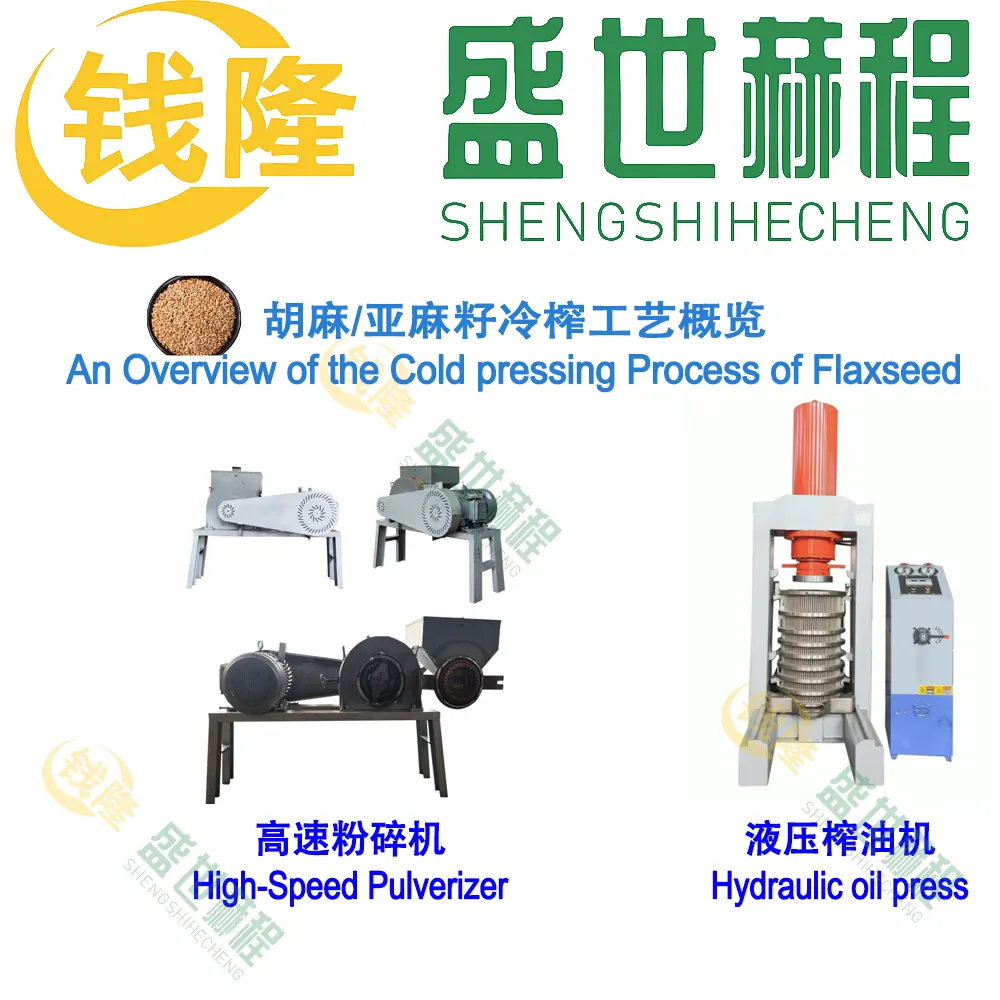

- Process route: Screening -> cleaning -> optional low-temperature drying -> high-speed crushing -> direct barrel pressing -> filtration.
- Quote usually includes: Machine model, barrel size, crushing suggestion, packing, delivery time, and remote after-sales support.
Recommended Line Configuration
- Pre-treatment: Oilseed pre-treatment equipment
- Cleaning/Crushing: 11 kW high-speed pulverizer
- Pressing host: 500 hydraulic oil press
- Filtration: Pneumatic filter press
- Refining/Filling: Edible oil refining equipment / Filling solutions
Factory Quote & After-Sales
- Reference solutions: Walnut oil solution, Almond oil solution, Flaxseed oil solution, Pumpkin seed oil solution
- Factory-direct supply supports standalone machine purchase or full-line procurement.
- Video inspection, export packing, commissioning guidance, and remote after-sales support are available.
- Choose 500 when your project needs a long-term core press with the highest pressure level and stronger structural reserve.
- Get Price & Quote
Product Parameters
500 Model Hydraulic Oil Press —— Consolidated Parameter Table
Instructions
- Total Pressing Force: 630 tons
- Stroke 850 mm → Minimum single pressing amount: 5 kg
- Stroke 700 mm → Minimum single pressing amount: 40 kg
- System pressure uniformly marked as 60 MPa
- Equipment weight uses original range, in tons (t)
500AC —— Single Barrel Type
| Barrel Diameter (mm) | Height (mm) | Volume (L) | Stroke (mm) | Minimum Single Pressing Amount (kg) | Main Dimensions W×L×H (mm) | System Pressure (MPa) | Cake Surface Pressure (MPa/cm²) | Equipment Weight (t) |
|---|---|---|---|---|---|---|---|---|
| 300 | 800 | 57 | 850 | 5 | 720×1050×2450 | 60 | 89 | 3.2–3.3 |
| 390 | 800 | 96 | 850 | 5 | 800×1100×2450 | 60 | 53 | 3.2–3.3 |
| 480 | 800 | 145 | 850 | 5 | 900×1300×2450 | 60 | 35 | 3.2–3.3 |
| 560 | 800 | 197 | 850 | 5 | 1000×1400×2450 | 60 | 26 | 3.3–3.4 |
| 630 | 800 | 249 | 850 | 5 | 1100×1600×2450 | 60 | 20 | 3.3–3.4 |
| 300 | 800 | 57 | 700 | 40 | 720×1050×2450 | 60 | 89 | 3.2–3.3 |
| 390 | 800 | 96 | 700 | 40 | 800×1100×2450 | 60 | 53 | 3.2–3.3 |
| 480 | 800 | 145 | 700 | 40 | 900×1300×2450 | 60 | 35 | 3.2–3.3 |
| 560 | 800 | 197 | 700 | 40 | 1000×1400×2450 | 60 | 26 | 3.3–3.4 |
| 630 | 800 | 249 | 700 | 40 | 1100×1600×2450 | 60 | 20 | 3.3–3.4 |
500BC —— Dual Barrel Type (Two identical barrels, total volume = single barrel × 2)
| Barrel Diameter (mm) | Height (mm) | Total Volume (L) | Stroke (mm) | Minimum Single Pressing Amount (kg) | Main Dimensions W×L×H (mm) | System Pressure (MPa) | Cake Surface Pressure (MPa/cm²) | Equipment Weight (t) |
|---|---|---|---|---|---|---|---|---|
| 300 | 800 | 114 | 850 | 5 | 720×1110×2450 | 60 | 89 | 3.2–3.3 |
| 390 | 800 | 192 | 850 | 5 | 800×1160×2450 | 60 | 53 | 3.2–3.3 |
| 480 | 800 | 290 | 850 | 5 | 900×1360×2450 | 60 | 35 | 3.2–3.3 |
| 560 | 800 | 394 | 850 | 5 | 1000×1460×2450 | 60 | 26 | 3.3–3.4 |
| 630 | 800 | 498 | 850 | 5 | 1100×1660×2450 | 60 | 20 | 3.3–3.4 |
| 300 | 800 | 114 | 700 | 40 | 720×1110×2450 | 60 | 89 | 3.2–3.3 |
| 390 | 800 | 192 | 700 | 40 | 800×1160×2450 | 60 | 53 | 3.2–3.3 |
| 480 | 800 | 290 | 700 | 40 | 900×1360×2450 | 60 | 35 | 3.2–3.3 |
| 560 | 800 | 394 | 700 | 40 | 1000×1460×2450 | 60 | 26 | 3.3–3.4 |
| 630 | 800 | 498 | 700 | 40 | 1100×1660×2450 | 60 | 20 | 3.3–3.4 |
Direct Cold-Press Trial and Acceptance Record
The 355-500 series is positioned for direct hydraulic cold pressing after cleaning and crushing. Do not use a generic oil-yield table: validate the selected model with the buyer's actual material and agreed finished-oil target.
| Trial field | Record before acceptance |
|---|---|
| Raw material route | Walnut, sea buckthorn seed, perilla, coconut, tea seed, hemp, flaxseed, almond, pine nut or pumpkin seed; identify the exact lot |
| Feed condition | Cleaning result, measured moisture, low-temperature drying when required, particle-size range and feed temperature |
| Machine setup | Basket diameter, actual load, pressure sequence, holding time, unloading time and complete cycle time |
| Oil result | Net oil after the agreed settling or filtration step, with temperature and container tare recorded |
| Cake result | Cake mass, condition and residual oil measured by the agreed laboratory method |
| Acceptance basis | Repeatable same-lot trials, agreed sampling, measuring instruments and written acceptance limits |
Industrial materials such as waste bleaching clay or activated-carbon decolorizer require a separate SDS review, closed collection, worker protection and disposal plan. They are not part of a food-oil cold-press acceptance test.
Pressing Barrel Selection Guide:
- Standard barrel specifications:
- Diameter: 390mm
- Length: 800mm
- Volume: 95.6 liters (can hold about 100kg of crushed material, continuously compacted)
- Can press all oil materials
- 300mm diameter is recommended as sesame-specific barrel
Suitable for sesame and other small particle oil materials
Verify small-particle loading, drainage, complete cycle time and cake residual oil by trial.
Volume: 56 liters
- 480mm /560mm /630mm diameter is recommended for oil materials requiring long pressing time
Suitable for oil materials requiring long pressing time
Confirm load, pressure-holding time and the complete cycle with the selected barrel.
Volume: 144/197/249 liters
- Optional 2100 mm length dual barrel model available, mainstream model is 1200 mm length single barrel model
500 Material Route: Define High-Load Project Acceptance
The 500 is the highest-force model in the published 355-500 series. It should be selected only after the buyer has confirmed the material route, actual batch requirement, site handling and the economics of one large press versus multiple smaller presses. The cold-press route remains clean -> condition moisture if required -> crush -> direct barrel pressing -> controlled settling or filtration.
Materials for witnessed trials
- Pine nut and walnut: record kernel quality, oxidation exposure, moisture, crushing and net filtered oil.
- Pumpkin seed and almond: state hull condition, batch load, cake discharge and cleaning time.
- Hemp, flaxseed and perilla: control dust, fine-particle loss, crusher temperature and filtration endpoint.
- Tea seed and coconut: define feed preparation and moisture limits before confirming barrel and cycle settings.
Contract and delivery gates
Before ordering, confirm machine and barrel configuration, foundation and lifting conditions, utilities, upstream crusher output, downstream filtration and storage, spare parts, export packing, installation responsibility and acceptance remedies. For multi-machine projects, demonstrate the planned staggered cycle and operator workload rather than multiplying a nominal batch figure.
Industrial-residue projects
Chemical waste clay and activated-carbon decolorizer need a separate engineering review based on the SDS and representative sample. The contract should define containment, worker protection, cleaning, collected liquid handling and lawful residue disposal.
Product Gallery
500 Series Oil Press - Flagship Design
500 Series Oil Press - Heavy Duty Structure
500 Series Oil Press - Smart Control
500 Series Oil Press - Efficient Production
Delivery and After-sales Scope
Before Shipment
- Confirm the machine configuration, voltage, accessories and packing list in the quotation.
- Request the final drawing, operating manual and available test records for the supplied model.
- Agree on installation, commissioning and operator-guidance responsibilities before the order is released.
Installation and Operation
- Follow the supplied manual for hydraulic oil filling, electrical checks, rotation checks and the first no-load movement.
- Record the agreed acceptance material, batch load, cycle conditions and observable oil/cake results during commissioning.
- Remote guidance or on-site service, where required, is quoted according to the destination and project scope.
Spare Parts and Technical Questions
- Identify replacement parts by machine model, drawing reference and component photo.
- Confirm price, availability and delivery time for each spare-parts request.
- Submit operating data, pressure readings, photos or video through the contact page for diagnosis.
