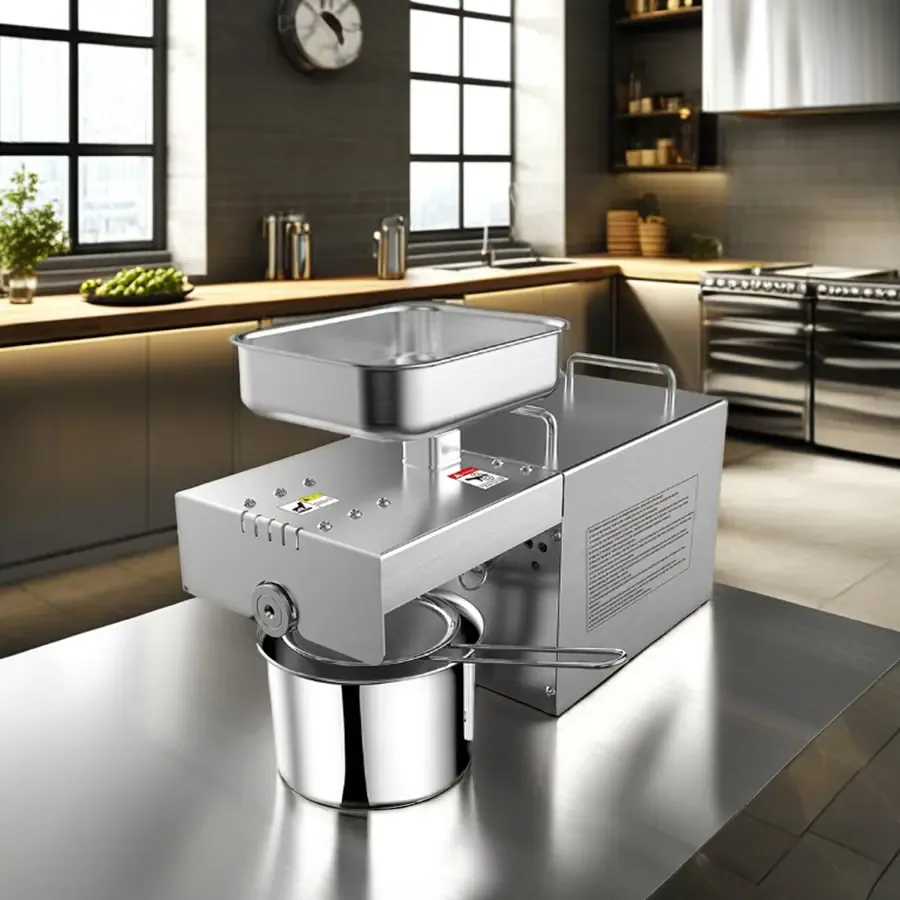

Open pageLYF-505 Small Screw Oil Press Machine (6 kg/h)
The LYF-505 is a bench-top screw oil press listed at 6 kg/h and 220 V. It is positioned for Home / hobby use, or a shop pressing to order for customers Oil yield and oil quality depend on the seed, pretreatment, moisture, operating window and the test method agreed by both parties.
Listed parameters
| Item | Specification |
|---|---|
| Model | LYF-505 |
| Rated throughput | 6 kg/h |
| Total power | To be confirmed |
| Motor power | To be confirmed |
| Voltage | 220 V |
| Machine size (L × W × H) | 37.5 × 17.5 × 30 cm |
| Packing size | To be confirmed |
| Net weight | 11 kg |
| Gross weight | 13 kg |
| Volume | To be confirmed |
| Contact material | To be confirmed |
| Certification | CE / EU / 3C |
| Automation | Automatic |
| Packing | To be confirmed |
| Warranty | 1 year |
| Minimum order | 1 set |
Capacity and acceptance boundary
The throughput figures on this page are supplier reference values from specific test conditions; they are not guaranteed output and do not constitute an acceptance criterion. Before quotation and contract, record the raw-material species and lot, pretreatment and particle size, feed moisture, batch mass, and the complete cycle from feeding through pressing, oil drainage, cake discharge, cleaning and restart. The FAT/SAT protocol must also define the continuous test duration, permitted stops, weighing and calibration method, sampling or laboratory method, acceptance tolerance, utilities and operator actions included. Only criteria written into the signed contract are binding.
“Automatic” in the table describes the pressing and heating control configuration. It does not mean that feeding, cake removal, cleaning or all material handling are unattended.
How this model is configured
- Continuous screw-and-barrel pressing with an automatic pressing and heating control sequence
- Built for 220 V single-phase supply — confirm the plug type and frequency for your country
- Bench footprint of 37.5 × 17.5 × 30 cm; allow clearance above the hopper
- Listed certification: CE / EU / 3C
- Screw, barrel, heating element and gaskets are the routine wear items — confirm the quoted spare-parts list
Typical scenarios
- Home or hobby pressing
- Farm household use
- A shop pressing to order in front of customers
- Small-batch premium oil sampling
Oilseeds this size of press is used for
Presses of this size are commonly used for:
- Peanut kernel
- Sesame
- Rapeseed
- Sunflower seed
- Flaxseed
- Walnut kernel
- Camellia / tea seed
- Coconut
Confirm suitability with a representative sample trial before ordering. Very hard, very fibrous or very low-oil material may not be workable on a bench-top press.
Where this model sits in the range
Compare the full range on the Small Screw Oil Press Machine overview. For bulk industrial projects, see the 300 Series and 325 Series instead.
Procurement, FAT/SAT and service scope
The manufacturer quotation should list the machine version, voltage and frequency, contact materials, guards and control items, accessories, packing, freight and tax exclusions, delivery time, spares, warranty and after-sales response channels. Factory acceptance testing (FAT) and site acceptance testing (SAT) are separate agreed scopes. Remote support and any on-site commissioning or training are supplied only when the written quotation and contract confirm the region, travel, visas, lodging, fees, duration, work content, buyer-provided utilities and acceptance responsibilities; unlisted services are not included.
