Open pagePneumatic Multi-layer Oil Filter Press
Product Overview
Our pneumatic multi-layer oil filter press features contact parts made of 304 stainless steel, with the entire machine designed with a high-gloss stainless steel mirror finish. All joint pipe fittings are also made of 304 stainless steel (with brass at the top), ensuring an aesthetically pleasing and hygienic appearance.
Key Features
- Integrated Design: The equipment comes with its own motor, gear pump, and air compressor, eliminating the need for additional purchases. It's ready to use simply by connecting to power.

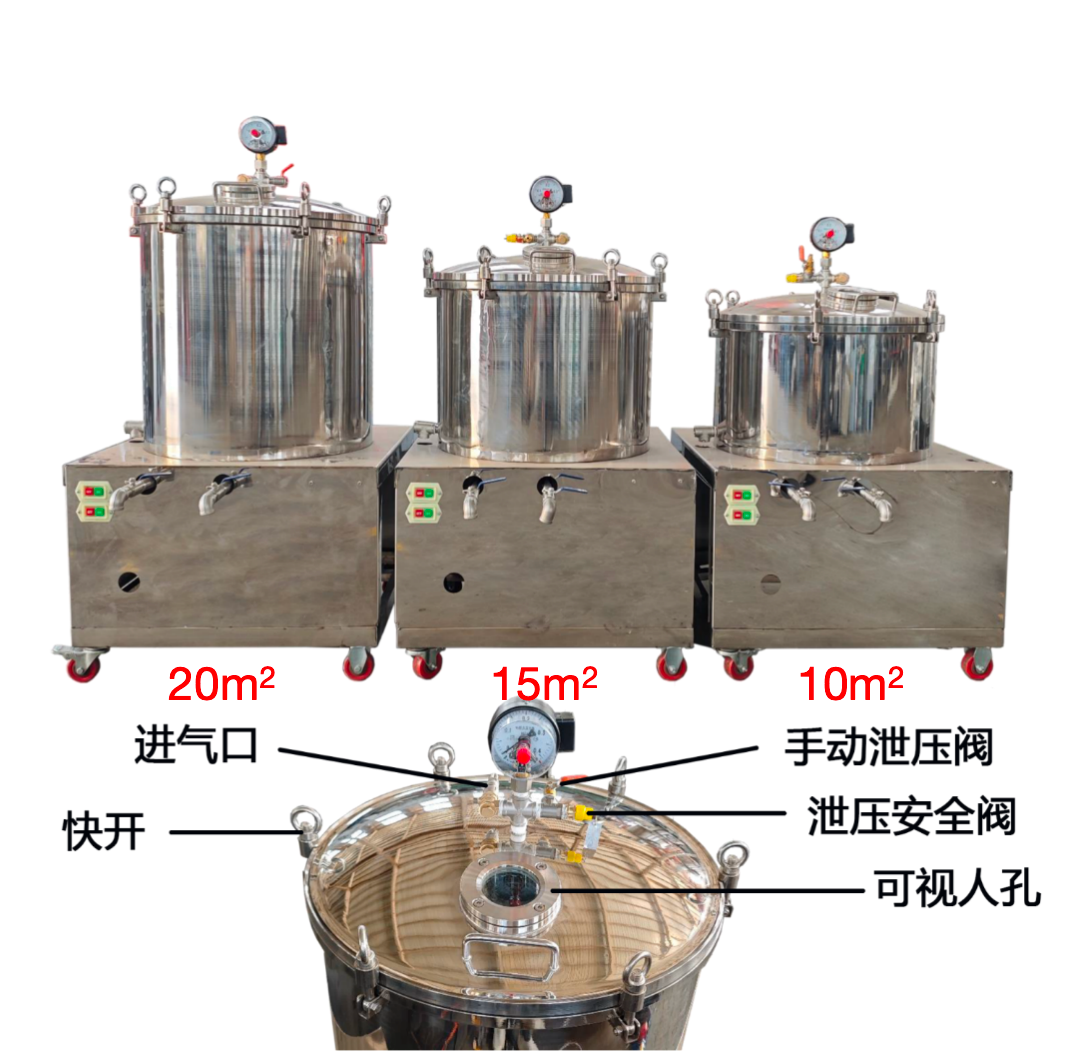

- Quick Opening Design: Based on customer feedback, the cover plate has been upgraded with a tempered glass transparent manhole design, allowing real-time observation of the liquid level inside the tank.
- Easy Maintenance: The filter material can be replaced with filter paper, making cleaning easy and reducing usage costs.
- Dual Safety Protection: Features a positive pressure design where the motor/air compressor automatically stops once the set pressure is reached. The top is equipped with a pressure relief safety valve, providing double safety assurance.
Specifications
| Specification | Dimensions (mm) | Tank Inner Diameter/Height (mm) | Design/Working Pressure (MPa) | Processing Capacity (Kg/h) | Motor/Air Compressor Power (Kw) |
|---|---|---|---|---|---|
| 10m² | 1000x1000x1200 | 600/36.5 | 0.8/0.2 | 100 | 1.1 |
| 15m² | 1000x1000x1300 | 600/46.5 | 0.8/0.2 | 150 | 1.1 |
| 20m² | 1000x1000x1400 | 600/61.5 | 0.8/0.2 | 250 | 1.1 |
