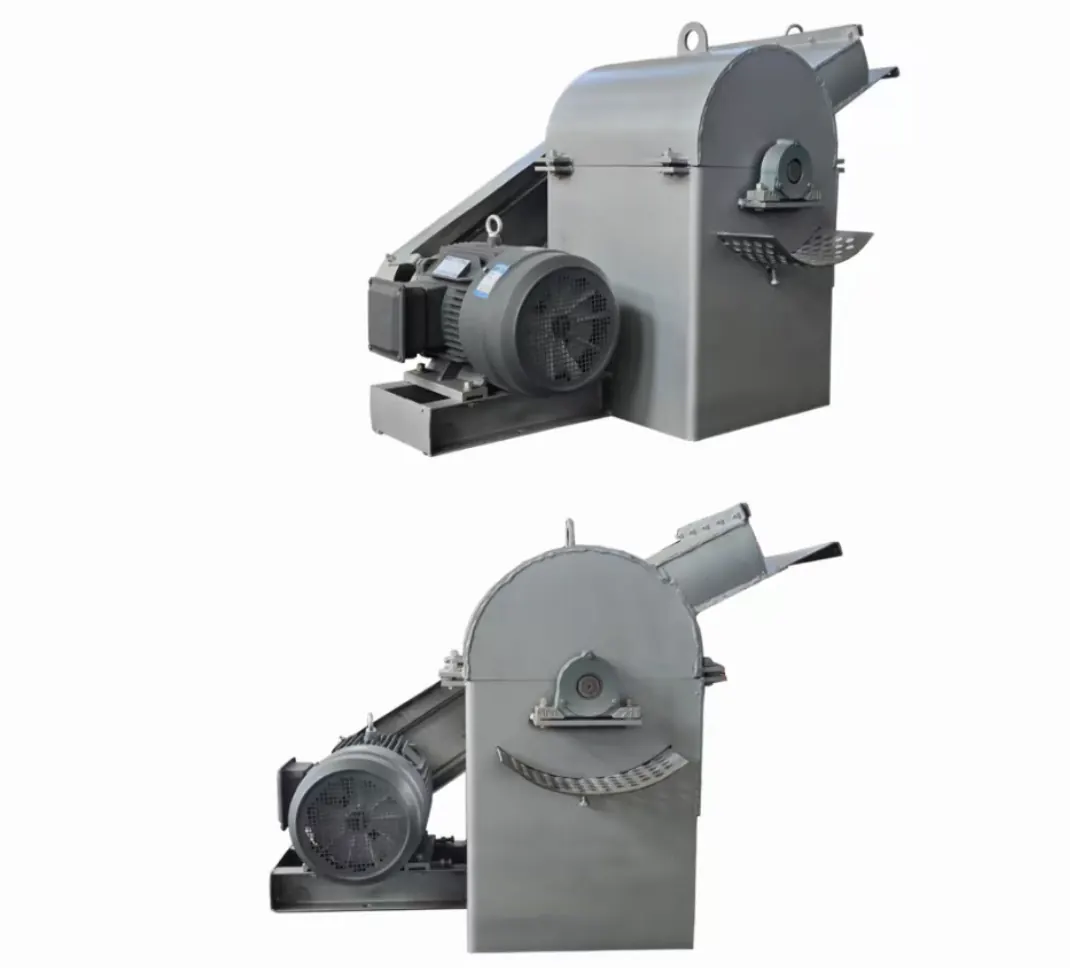

Open pageCake Pulverizer
Product Overview
This machine is suitable for various bean cakes, peanut cakes, cottonseed cakes, and other block or granular materials. It has a simple structure and is easy to maintain, making it an essential product for large feed processing plants. The product is mainly composed of a frame, motor, and crushing box. After oil extraction, residual oil materials (cake blocks) are put into the pulverizer, where they are repeatedly struck by high-speed rotating hammer blades, causing them to break. There is a sieve plate at the bottom, and the crushed cake blocks flow out as small particles from under the sieve.
Specifications
| Parameter | Value |
|---|---|
| Model | FBJ-500 |
| Power | 11 kW (reference only; confirm in the final technical data and written quotation) |
| Dimensions | 600600800 |
| Overall Weight | 292Kg |
| Processing Capacity | 1–4 kg/h (unit and test conditions unverified; written confirmation required) |
| Sieve Mesh Diameter | 20mm |
| Inlet Size | 525*145mm |
| Crushing Blade Structure | Hammer Type |
Parameter verification
The values in this table are preliminary references only. No readable nameplate, final manufacturer datasheet, or measured test record currently verifies the stated 11 kW rating or the unit and operating conditions behind 1–4 kg/h. Both figures must be confirmed before ordering in the final technical documentation, written quotation, and contract; neither is a confirmed specification or guaranteed throughput.
Quotation and FAT confirmation
- For the quotation, provide a representative cake sample and state the material, cake diameter and thickness, moisture, block size, bulk condition, and residual oil condition. The supplier must identify the motor rating, throughput unit, test basis, feed method, screen aperture, target particle size, voltage, frequency, and phase in writing.
- For the factory acceptance test (FAT), use the buyer-approved sample and agreed screen. After stable operation, run continuously for the agreed period; record start time, end time, downtime, total feed, qualified output, oversize or returned material, and material loss.
- Weigh the feed and qualified output using the agreed calibrated scale and calculate capacity from effective running time using the written measurement method. The contract and signed FAT report must state the acceptance value and tolerance.
Send the sample details and acceptance requirements when you request a written manufacturer quote.
Precautions for Use
- Check all connecting bolts. If loose or damaged, tighten or replace them immediately. High-strength bolts and nuts of the same specification should be used for replacement.
- Prevent phase loss when connecting to power. Phase loss will burn out the motor (not covered by warranty).
- During use, pay attention to whether there are any abnormalities in each component. If any abnormalities are found, stop the machine immediately and check.
- Do not repair the machine while it is operating at high speed.
- Strictly follow the operating procedures during use.
- Do not put hands into the equipment during crushing, otherwise, it will cause personal injury.
- It is strictly forbidden to put metal, iron, or other substances into the machine for crushing.
- The cake diameter is 500mm.
