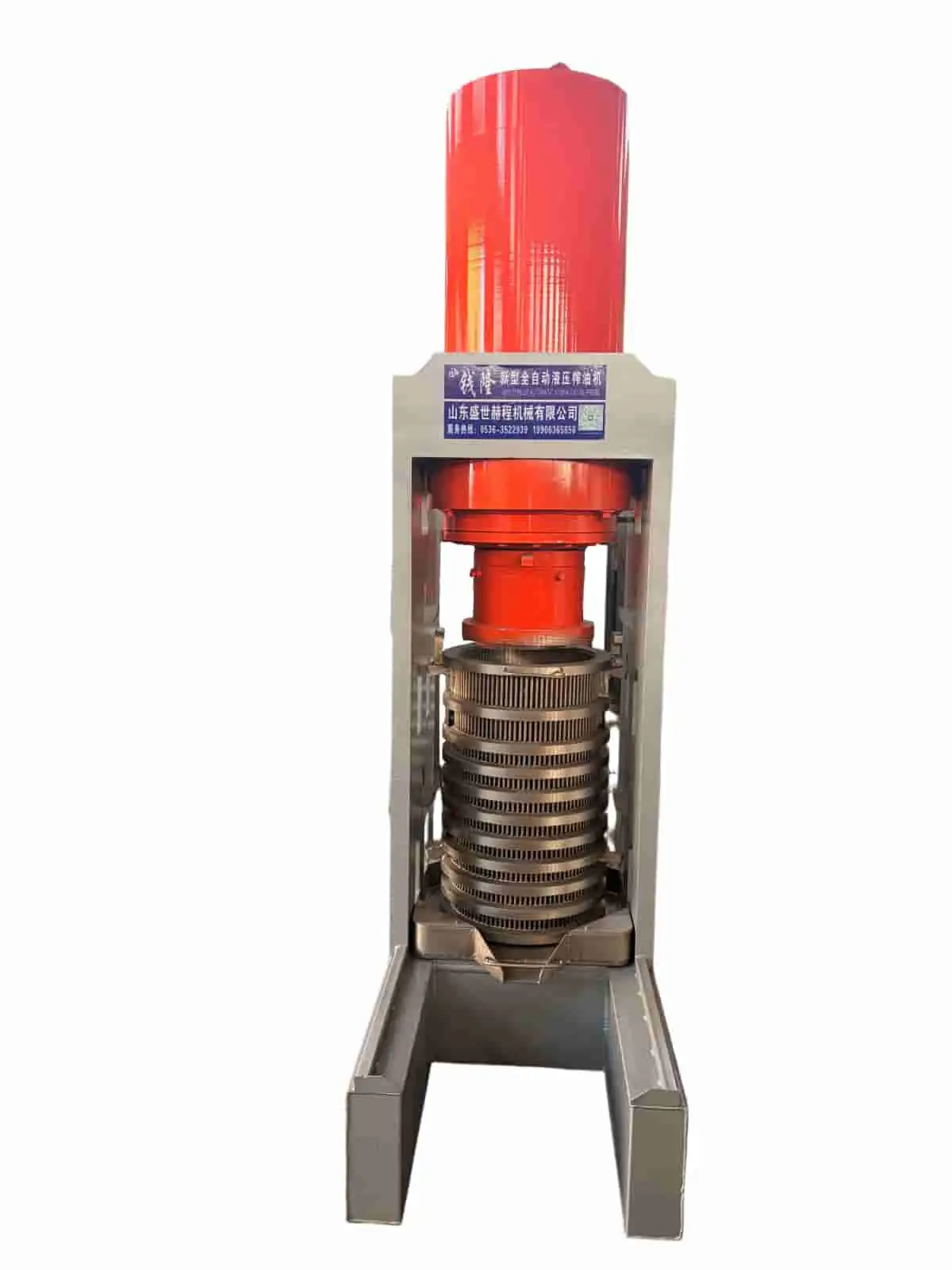

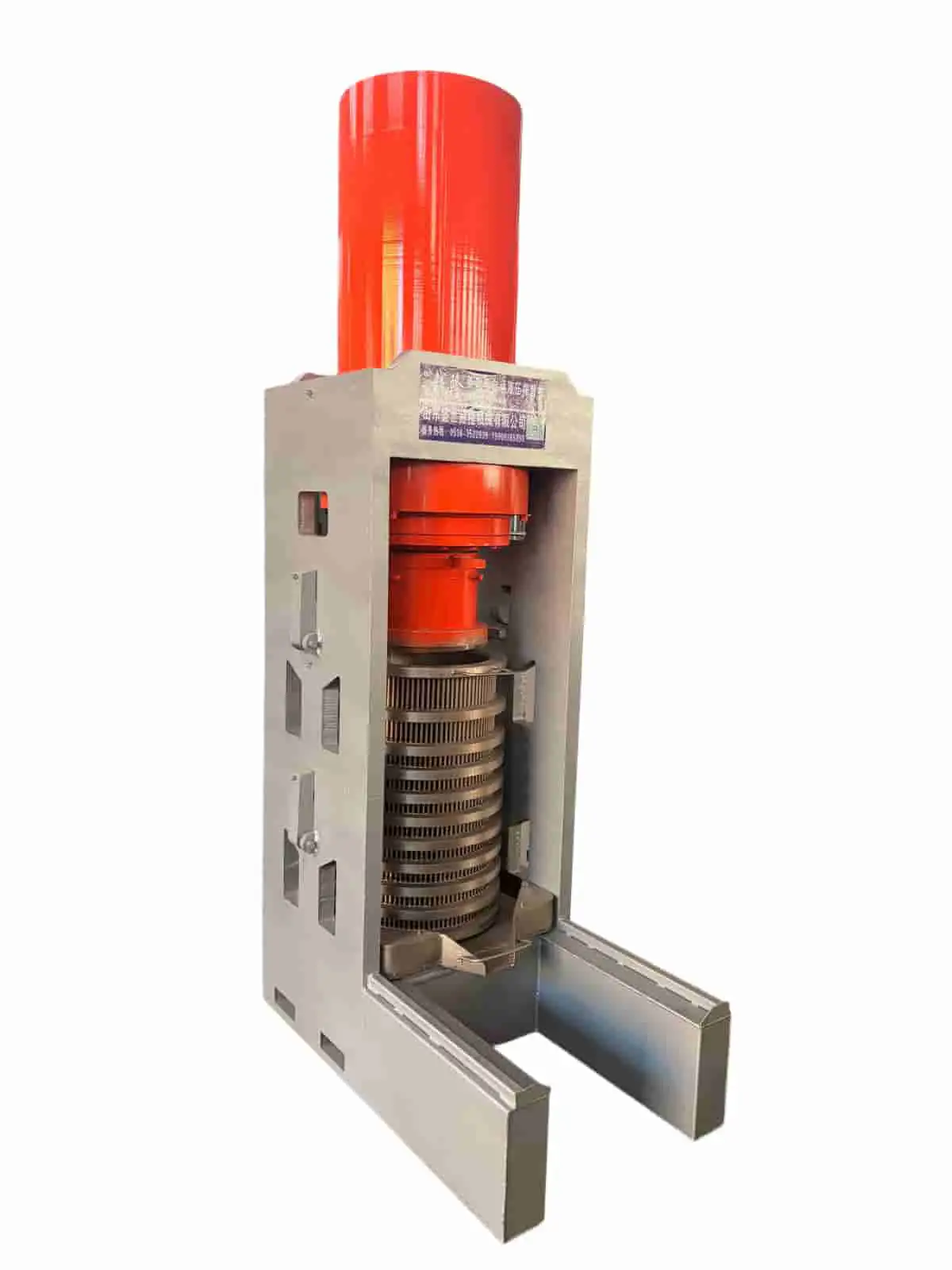

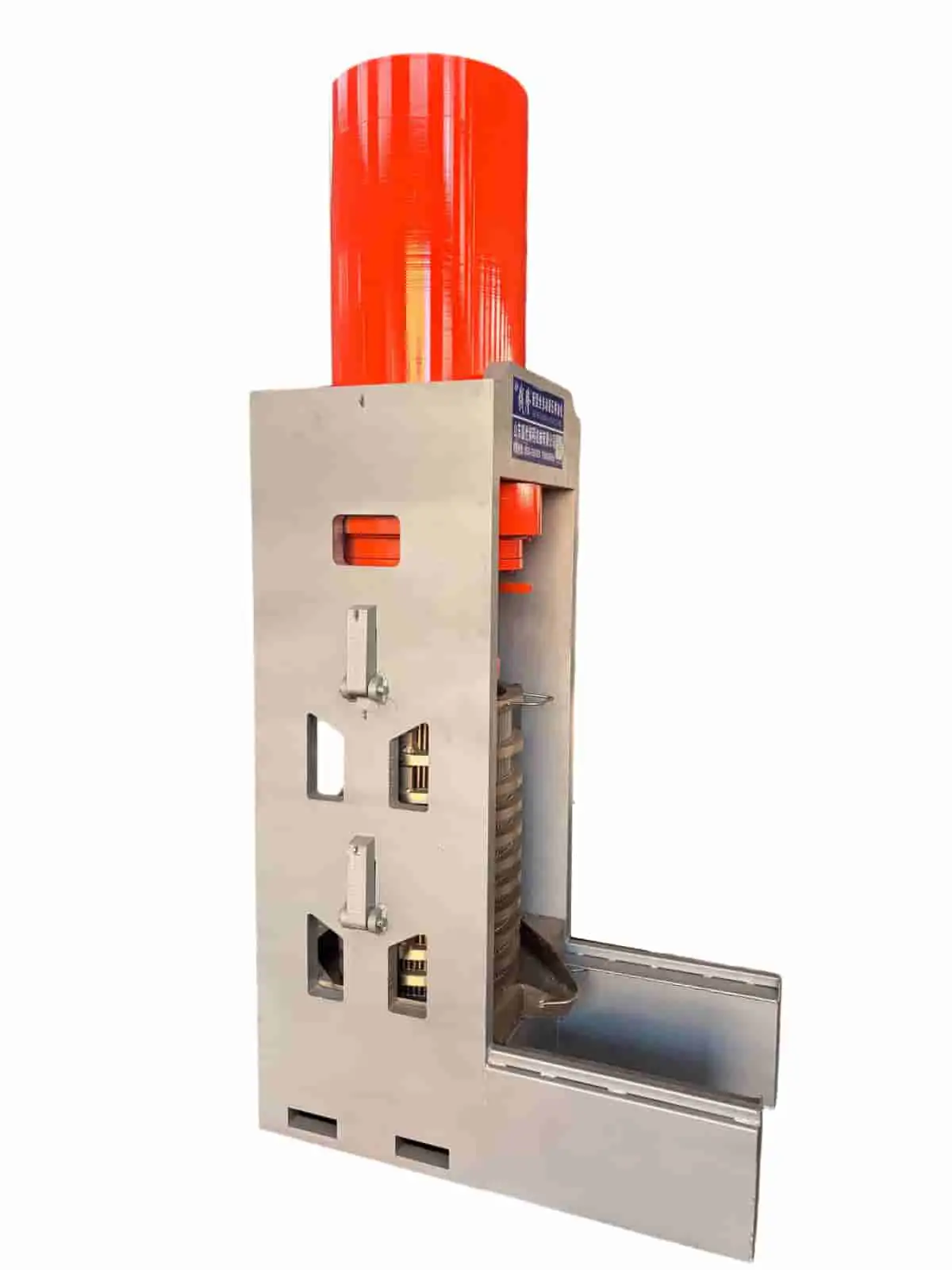

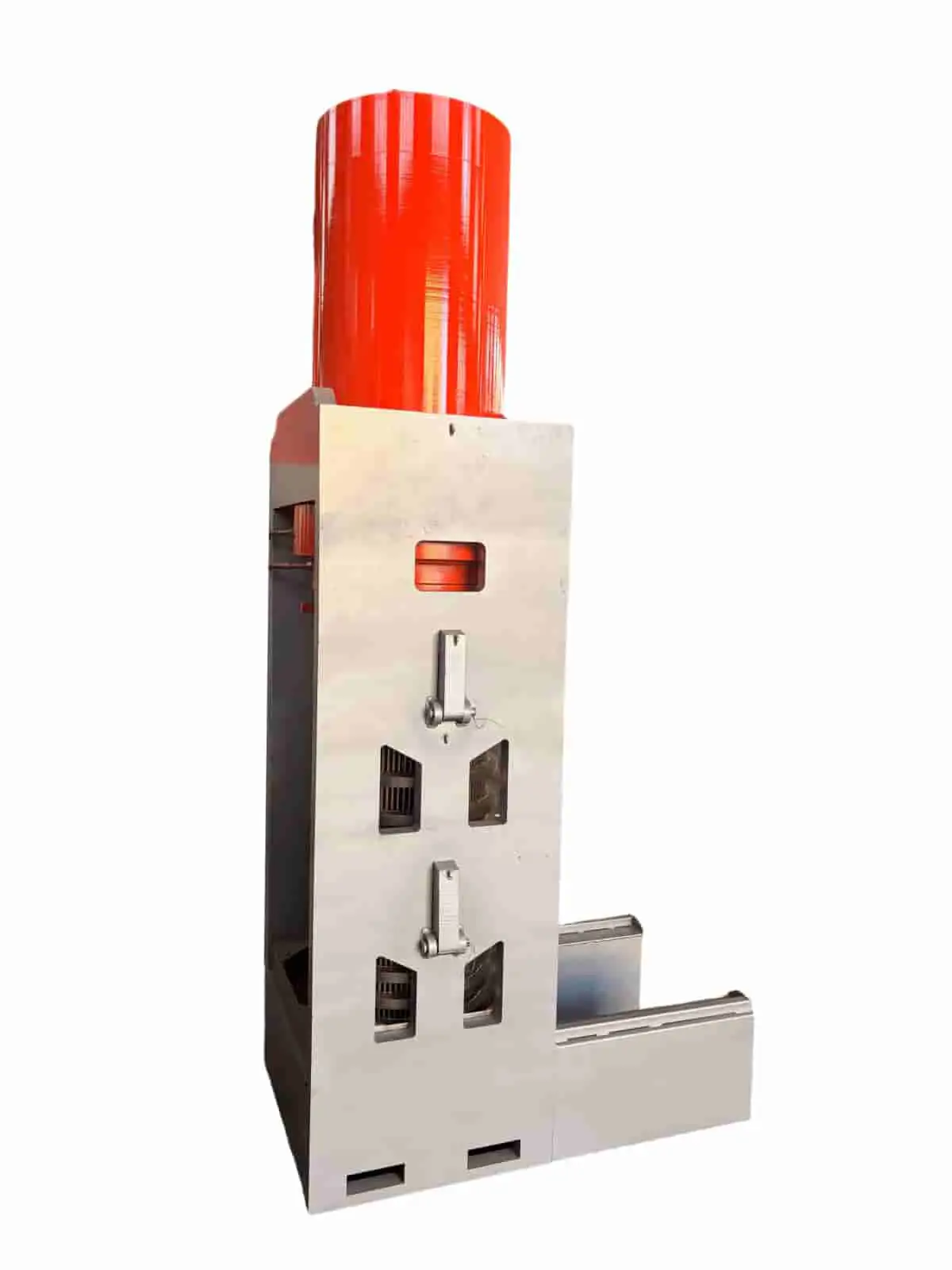

Series Overview
The 480 Series Hydraulic Oil Press is our flagship model, specifically designed for the high pressure requirements needed for cold pressing, suitable for all types of oil mills. This series features compact structure, simple operation, and stable performance.
It mainly consists of frame, hydraulic cylinder, and material barrel. The control box uses a microcomputer controller, all programs are software connected, and the control program will not be damaged.
The 480 model is specially designed for cold pressing: walnut, sea buckthorn oil, perilla seed, coconut oil, tea seed, hemp seed, flaxseed, almond, pine nut, pumpkin seed, chemical waste clay, activated carbon decolorizer, etc.
Dual barrel dual sliding track design - when one barrel is pressing, it does not affect the other barrel loading, greatly improving work efficiency.
Product Parameters
480 Model Hydraulic Oil Press —— Consolidated Parameter Table
Instructions
- Total Pressing Force: 600 tons
- Stroke 850 mm → Minimum single pressing amount: 5 kg
- Stroke 700 mm → Minimum single pressing amount: 40 kg
- System pressure uniformly marked as 60 MPa
- Equipment weight uses original range, in tons (t)
480AC —— Single Barrel Type
| Barrel Diameter (mm) | Height (mm) | Volume (L) | Stroke (mm) | Minimum Single Pressing Amount (kg) | Main Dimensions W×L×H (mm) | System Pressure (MPa) | Cake Surface Pressure (MPa/cm²) | Equipment Weight (t) |
|---|---|---|---|---|---|---|---|---|
| 300 | 800 | 57 | 850 | 5 | 720×1050×2450 | 60 | 85 | 3.2–3.3 |
| 390 | 800 | 96 | 850 | 5 | 800×1100×2450 | 60 | 50 | 3.2–3.3 |
| 480 | 800 | 145 | 850 | 5 | 900×1300×2450 | 60 | 33 | 3.2–3.3 |
| 560 | 800 | 197 | 850 | 5 | 1000×1400×2450 | 60 | 24 | 3.3–3.4 |
| 630 | 800 | 249 | 850 | 5 | 1100×1600×2450 | 60 | 19 | 3.3–3.4 |
| 300 | 800 | 57 | 700 | 40 | 720×1050×2450 | 60 | 85 | 3.2–3.3 |
| 390 | 800 | 96 | 700 | 40 | 800×1100×2450 | 60 | 50 | 3.2–3.3 |
| 480 | 800 | 145 | 700 | 40 | 900×1300×2450 | 60 | 33 | 3.2–3.3 |
| 560 | 800 | 197 | 700 | 40 | 1000×1400×2450 | 60 | 24 | 3.3–3.4 |
| 630 | 800 | 249 | 700 | 40 | 1100×1600×2450 | 60 | 19 | 3.3–3.4 |
480BC —— Dual Barrel Type (Two identical barrels, total volume = single barrel × 2)
| Barrel Diameter (mm) | Height (mm) | Total Volume (L) | Stroke (mm) | Minimum Single Pressing Amount (kg) | Main Dimensions W×L×H (mm) | System Pressure (MPa) | Cake Surface Pressure (MPa/cm²) | Equipment Weight (t) |
|---|---|---|---|---|---|---|---|---|
| 300 | 800 | 114 | 850 | 5 | 720×1110×2450 | 60 | 85 | 3.6–3.8 |
| 390 | 800 | 192 | 850 | 5 | 800×1160×2450 | 60 | 50 | 3.6–3.8 |
| 480 | 800 | 290 | 850 | 5 | 900×1360×2450 | 60 | 33 | 3.6–3.8 |
| 560 | 800 | 394 | 850 | 5 | 1000×1460×2450 | 60 | 24 | 3.6–3.8 |
| 630 | 800 | 498 | 850 | 5 | 1100×1660×2450 | 60 | 19 | 3.6–3.8 |
| 300 | 800 | 114 | 700 | 40 | 720×1110×2450 | 60 | 85 | 3.6–3.8 |
| 390 | 800 | 192 | 700 | 40 | 800×1160×2450 | 60 | 50 | 3.6–3.8 |
| 480 | 800 | 290 | 700 | 40 | 900×1360×2450 | 60 | 33 | 3.6–3.8 |
| 560 | 800 | 394 | 700 | 40 | 1000×1460×2450 | 60 | 24 | 3.6–3.8 |
| 630 | 800 | 498 | 700 | 40 | 1100×1660×2450 | 60 | 19 | 3.6–3.8 |
Reference Table for Oil Yield Rates of Various Raw Materials
(Based on 100 kg of raw material)
| Serial No. | Material | Process | Oil Yield (kg) | Percentage (%) |
|---|---|---|---|---|
| 1 | Peanut | Hot Pressing | 42–52 | 42%–52% |
| 2 | Sesame | Hot Pressing | 42–52 | 42%–52% |
| 3 | Tea Seed | Hot Pressing | 15–35 | 15%–35% |
| 4 | Walnut | Cold Pressing | 56–72 | 56%–72% |
| 5 | Soybean | Hot Pressing | 12–18 | 12%–18% |
| 6 | Soybean | Cold Pressing | 12–18 | 12%–18% |
| 7 | Flax / Flaxseed | Hot Pressing | 35–40 | 35%–40% |
| 8 | Flax / Flaxseed | Cold Pressing | 35–40 | 35%–40% |
| 9 | Rapeseed | Hot Pressing | 30–40 | 30%–40% |
| 10 | Rapeseed | Cold Pressing | 30–40 | 30%–40% |
| 11 | Sunflower Seed | Hot Pressing | 45–60 | 45%–60% |
| 12 | Oil Sludge | Hot Pressing | 20–60 | 20%–60% |
| 13 | Oil Sludge | Cold Pressing | 20–60 | 20%–60% |
| 16 | Meal Residue | Hot Pressing | 30–50 | 30%–50% |
| 18 | Waste Clay | Hot Pressing | 8–60 | 8%–60% |
| 19 | Waste Clay | Cold Pressing | 8–60 | 8%–60% |
| 20 | Animal Oil Residue | Hot Pressing | 40–60 | 40%–60% |
| 21 | Animal Oil Residue | Cold Pressing | 40–60 | 40%–60% |
| 22 | Medicinal Residue | Cold Pressing | Weight Loss 70% | Weight Loss 70% |
| 26 | Perilla Seed | Hot Pressing | 30–40 | 30%–40% |
| 27 | Perilla Seed | Cold Pressing | 30–40 | 30%–40% |
| 28 | Coconut Pulp | Cold Pressing | 30–40 | 30%–40% |
| 29 | Palm Fruit | Hot Pressing | Approx. 40 (Estimated) | Approx. 40% (Estimated) |
| 30 | Almond / Apricot Kernel | Cold Pressing | 50–70 | 50%–70% |
| 31 | Hazelnut | Cold Pressing | 50–70 | 50%–70% |
| 32 | Cashew Shell | Hot Pressing | 20–30 | 20%–30% |
| 33 | Cashew Kernel | Cold Pressing | 40–50 | 40%–50% |
| 34 | Grape Seed | Hot Pressing | 10–15 | 10%–15% |
| 35 | Pumpkin Seed | Cold Pressing | 50–70 | 50%–70% |
| 36 | Peach Kernel | Cold Pressing | 50–70 | 50%–70% |
| 38 | Glutinous Rice | Cold Pressing | 20–30 | 20%–30% |
| 39 | Millet Germ | Cold Pressing | 40–50 | 40%–50% |
| 40 | Wheat Germ | Cold Pressing | 40–50 | 40%–50% |
| 41 | Corn Germ | Hot Pressing | 30–45 | 30%–45% |
| 42 | Castor Seed | Hot Pressing | 40–60 | 40%–60% |
Note: The above data are reference values from laboratory or actual production. Different regions' raw material oil content, moisture content, processing temperature, and equipment model factors may cause actual oil yield to vary. Data is for reference only, actual results should be based on actual production.
Pressing Barrel Selection Guide:
- Standard barrel specifications:
- Diameter: 390mm
- Length: 800mm
- Volume: 95.6 liters (can hold about 100kg of crushed material, continuously compacted)
- Can press all oil materials
- 300mm diameter is recommended as sesame-specific barrel
Suitable for sesame and other small particle oil materials
Improve oil yield and efficiency
Volume: 56 liters
- 480mm /560mm /630mm diameter is recommended for oil materials requiring long pressing time
Suitable for oil materials requiring long pressing time
Further improve oil yield and efficiency
Volume: 144/197/249 liters
- Optional 2100 mm length dual barrel model available, mainstream model is 1200 mm length single barrel model
Pressing Material Guide:
- Partial oil material pressing process guidance as follows:
- Walnut (Recommended 480AC-390)
- Cold pressing process: Walnuts go through screening, cleaning, high-speed crushing, then directly into hydraulic oil press barrel pressing.
- Walnut oil pressed using this process has golden color, sweet aftertaste, pressed oil does not require hydration treatment, no foaming when cooking.
- Sea buckthorn oil (Recommended 480AC-390)
- Cold pressing process: Sea buckthorn oil goes through screening, cleaning, then directly into hydraulic oil press barrel pressing
- Perilla seed (Recommended 480AC-390)
- Hot pressing process: Perilla seeds go through screening, cleaning, stir-frying, crushing, then steaming, finally into hydraulic oil press barrel pressing
- Cold pressing process: Perilla seeds go through screening, cleaning, crushing, then directly into hydraulic oil press barrel pressing
- Coconut oil (Recommended 480AC-390)
- Cold pressing process: Crushed coconut pulp directly into hydraulic oil press barrel pressing
- Tea seed (Recommended 480AC-390)
- Tea seed oil hot pressing process: Tea seeds go through screening, cleaning, drying, crushing, steaming and stir-frying, then connected to hydraulic oil press barrel pressing.
- Tea seed oil pressed using this process has clear color, pure aroma, and rich nutrition.

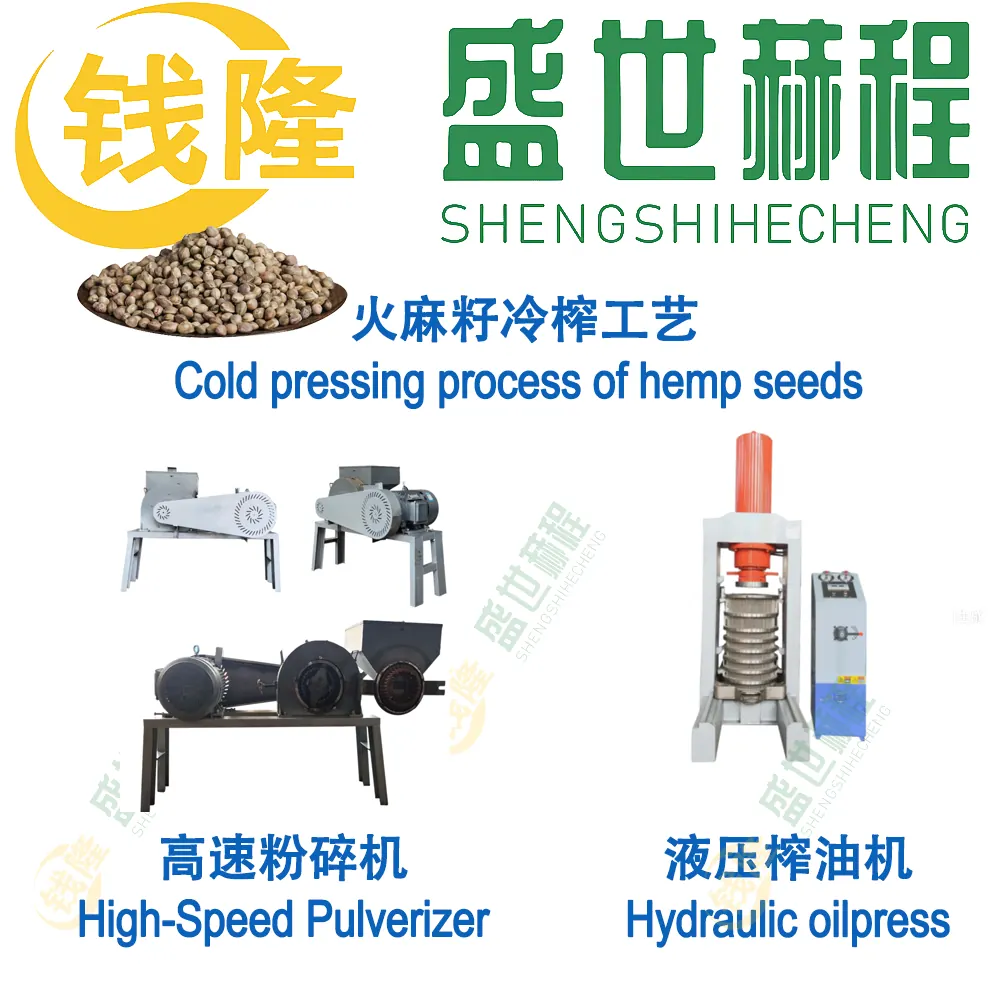

- Hemp seed (Recommended 480AC-390)
- Hemp seed oil cold pressing process: Hemp seeds go through screening, cleaning, drying, crushing, then connected to hydraulic oil press barrel pressing.
- Walnut (Recommended 480AC-390)
Flax/Flaxseed (Recommended 480AC-390)
- Flax/Flaxseed hot pressing process: Flax seeds go through heating stir-frying + grinding stir-frying, then placed into hydraulic oil press barrel pressing.
- Flaxseed oil hot pressing process: Flax seeds go through high-speed crusher crushing, then placed into hydraulic oil press barrel pressing. Sweet aftertaste, sweet flavor, pressed oil does not require hydration treatment, no foaming when cooking.

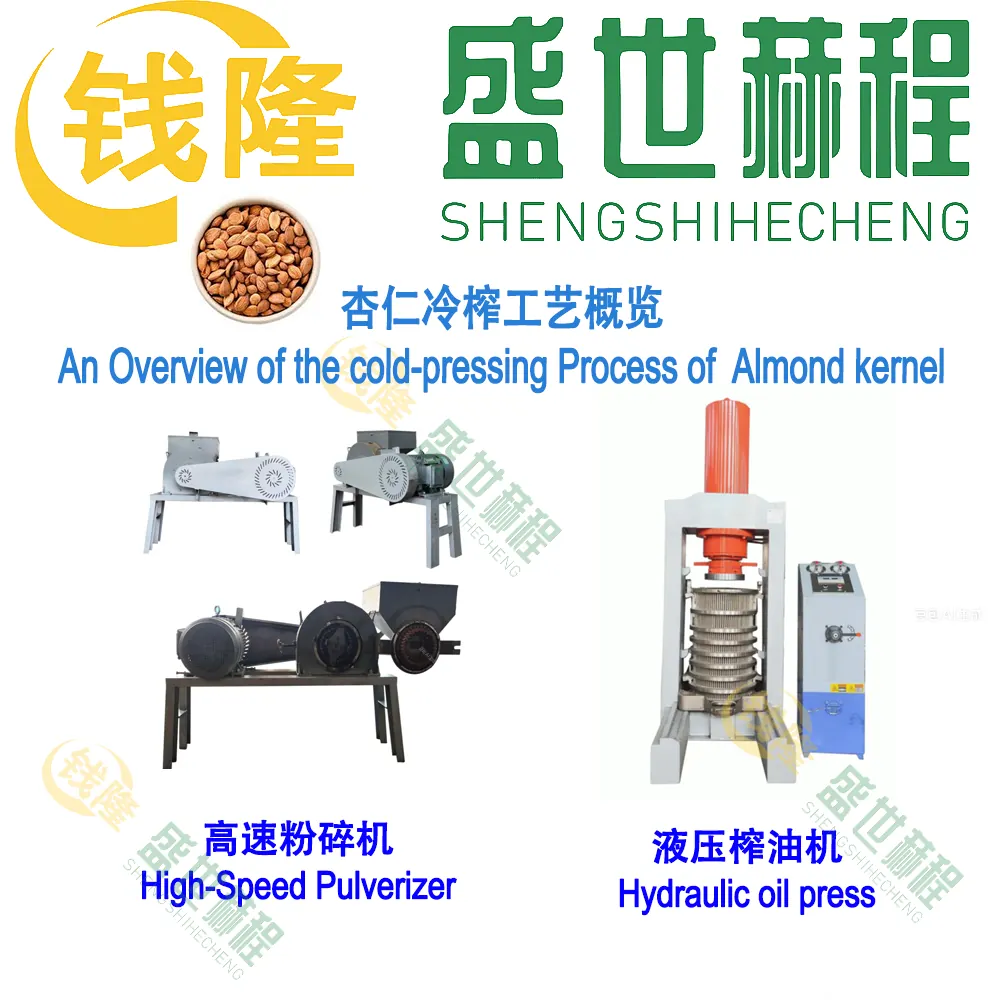

Almond (Recommended 480AC-390)
- Almond oil cold pressing process: After screening, cleaning, high-speed crushing, then directly into hydraulic oil press barrel pressing
Pumpkin seed (Recommended 480AC-390)
- Pumpkin seed oil cold pressing process: After screening, cleaning, high-speed crushing, then directly into hydraulic oil press barrel pressing
Waste clay (Recommended 480AC-390)
- Waste clay hot/cold pressing process: High-temperature steaming, then directly placed into hydraulic oil press barrel pressing.
- Waste clay cold pressing process: Directly placed into hydraulic oil press barrel pressing.
- Activated carbon decolorizer (Recommended 480AC-390)
- Activated carbon decolorizer cold pressing process: Directly placed into hydraulic oil press barrel pressing.
- Activated carbon decolorizer cold pressing process: Directly placed into hydraulic oil press barrel pressing.
