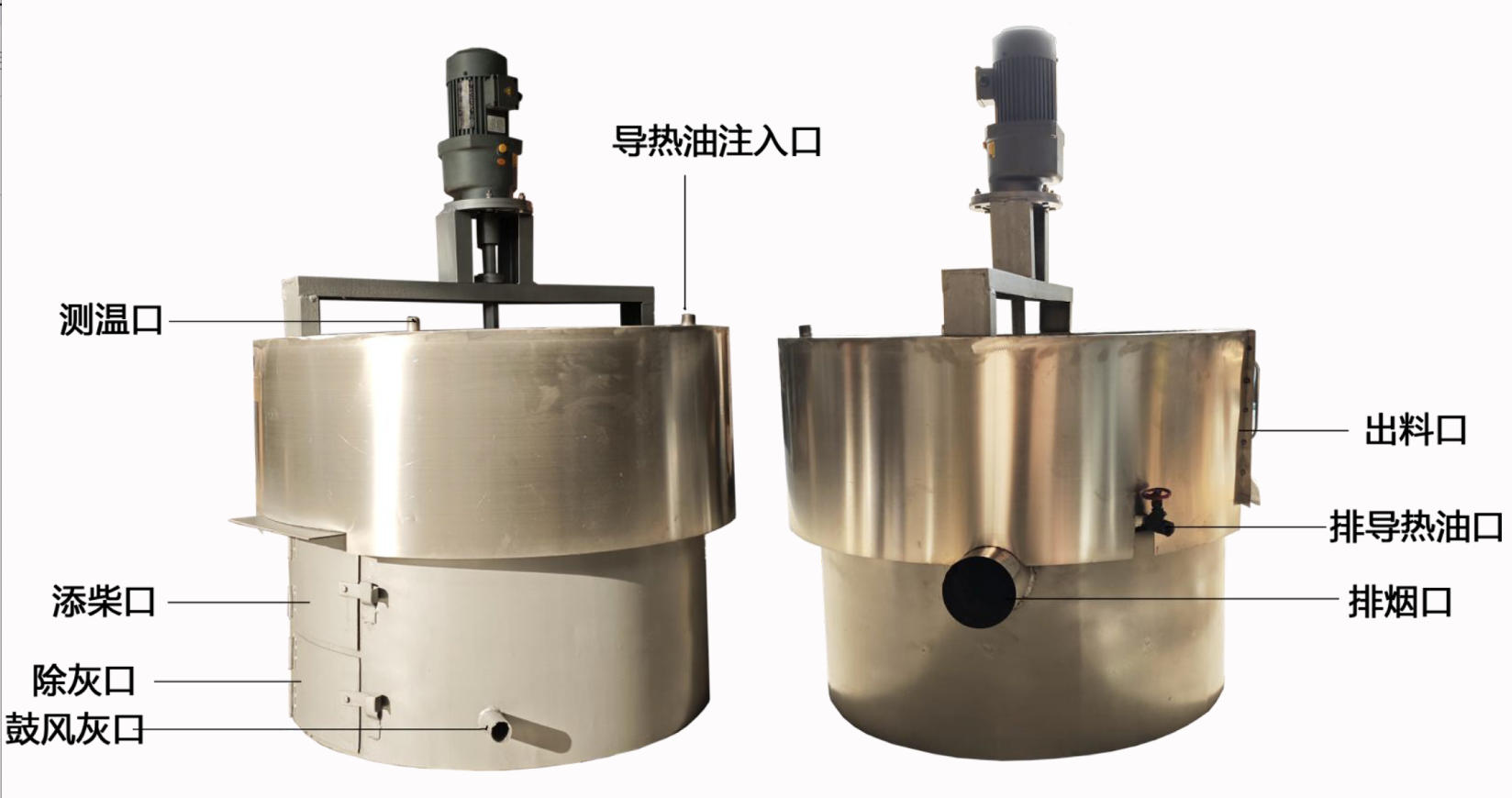

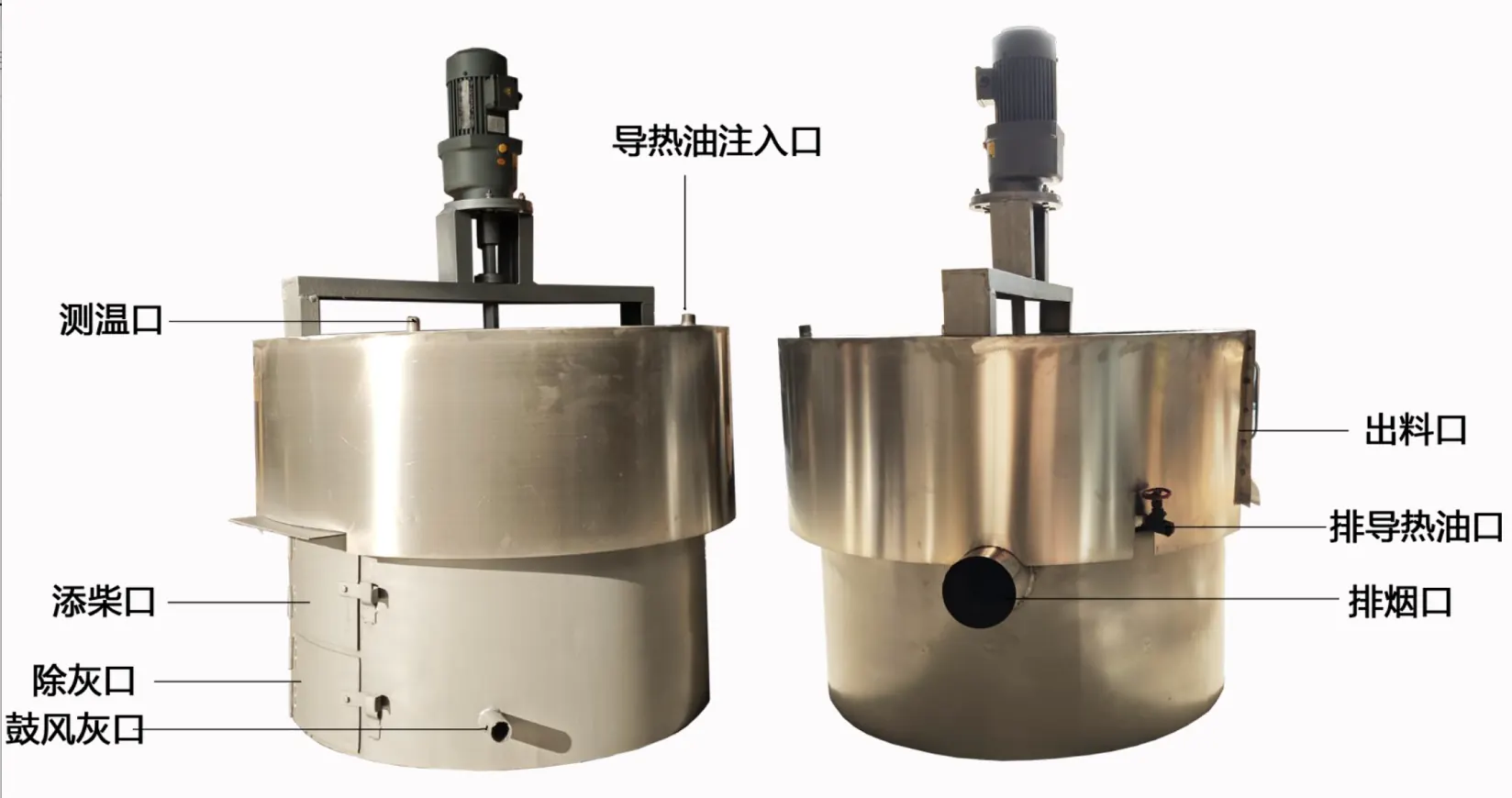

Open pageWood-Fired Thermal Oil Flat-Bottom Wok
Product Overview
This wok combines a furnace, thermal-oil heat-transfer jacket, agitator and discharge structure for hot-process oilseed preparation. Thermal oil can distribute heat around the vessel, but batch uniformity still depends on fuel, firing control, oil level, agitation, loading and recipe.
- Wood or natural gas must be confirmed against local fuel availability, emissions, ventilation and fire-safety requirements.
- An optional blower changes combustion air and heating rate; the required arrangement should be confirmed with the furnace and site chimney.
- Rock-wool insulation and stainless outer cladding are construction details to verify in the ordered drawing.
- The adjustable scraper can reduce material buildup when correctly set. It does not guarantee that every material or recipe will avoid sticking or scorching.
Specifications
| Model | CDRYCG-200 |
|---|---|
| Capacity | 100-125Kg |
| Motor Power | 1.1Kw |
| Fuel | Wood/Natural Gas |
| Outer Diameter of Pot Body | 1200mm |
| Weight | Approx. 382Kg |
| Equipment Dimensions | 1650x1200mm |
| Inner Diameter of Wok | 1000mm |
| Depth of Wok | 380mm |
| Discharge Port Clearance from Ground | 500mm |
| Grounding Required | Yes |
| Heat Transfer Medium | 350#*50Kg |
Treat the table as a configuration reference. Confirm dimensions, usable batch load, thermal-fluid grade and charge, motor, fuel system, expansion/vent arrangement, grounding and supplied accessories in the signed quotation.
Information Required for a Quote
Provide the oilseed, hot-press recipe, batch load, initial/final temperature, heating time, fuel, local voltage, chimney and ventilation conditions, workshop layout and downstream press. Include any requirement for temperature logging, automatic discharge or dust/fume collection.
Factory and Site Acceptance
Use a representative batch to record heat-up curve, material-temperature spread, mixing and scraper clearance, discharge time, residual material, fuel use under the test condition, thermal-fluid leakage inspection and emergency shutdown. Operating cost must be calculated from the buyer's fuel price and measured project data.
Request the wok drawing, test scope and manufacturer quotation
