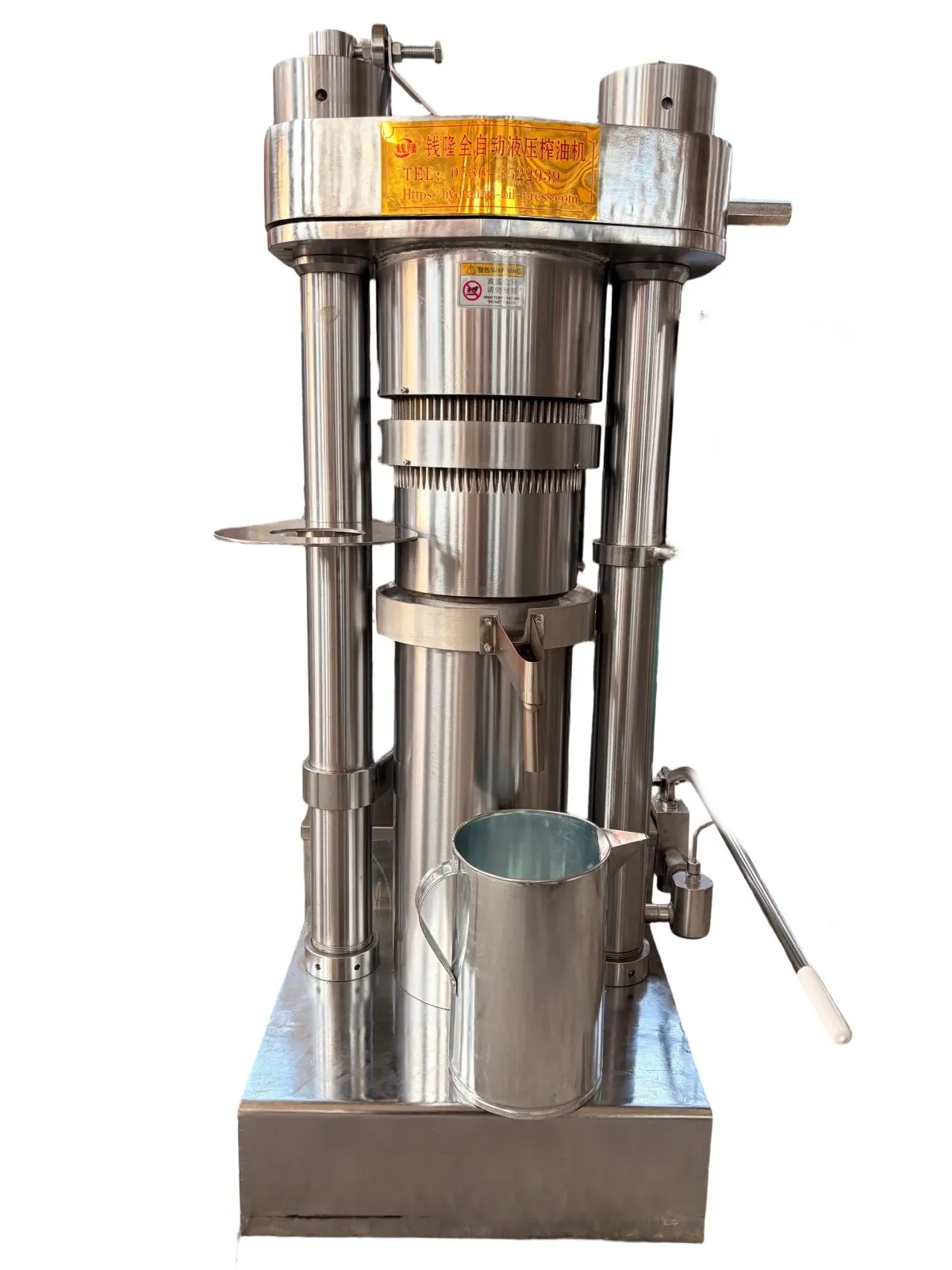

Open pageKHOP-10KG Small Hydraulic Oil Press Machine
The KHOP-10KG is a small-batch hydraulic press configured for sesame-oil shops, fresh-oil counters, and sample-led premium-oil projects. Its hydraulic cycle and shop-facing layout can reduce some manual pressing steps, while feeding, loading, cake removal, cleaning, and material handling depend on the ordered configuration.
Key advantages
- Hydraulic cylinder and small-batch loading arrangement
- Configurable hydraulic cycle and control interface
- Visible pressing area for process observation
- Compact structure for shops and retail counters
- Material suitability confirmed by a representative sample trial
Recommended materials
This model is mainly positioned for:
- Sesame, the primary recommendation
- Walnut kernel
- Tea seed
- Pine nuts (peeled)
- Almond
For heavier bulk projects, see 300 Series instead.
Public parameter table
| Item | Specification |
|---|---|
| Model | KHOP-10KG |
| Machine size | 950 x 850 x 1550 mm |
| Weight | 1000 kg |
| Voltage | 380V / 220V |
| Power | 1.5 kW |
| Capacity | 1.0 ton / 24 hours |
| Operation type | Automatic hydraulic press |
Reference capacity and acceptance boundary
The 1.0, 1.8, and 2.1 t/24 h figures shown on this page are supplier reference values from specific test conditions, not guaranteed output. Before quotation and contract, record the raw-material species and lot, pretreatment and particle-size distribution, feed moisture, batch mass, and the complete cycle from loading through pressing, oil drainage, cake removal, cleaning, and restart. The FAT/SAT protocol must also define the continuous test duration, permitted stops, weighing and calibration method, sampling or laboratory method, acceptance tolerance, utilities, and operator actions included. Only criteria written into the signed contract are binding.
“Automatic hydraulic press” in the table describes the hydraulic-cycle and control configuration; it does not mean that feeding, unloading, cleaning, or all material handling are unattended.
Typical scenarios
- Entry-level sesame oil shop
- Organic oil retail counter
- Supermarket fresh oil section
- Low-volume premium oil business
Compare with the larger models
| Item | KHOP-10KG | KHOP-15KG | KHOP-20KG |
|---|---|---|---|
| Supplier reference / 24 h | 1.0 t/day | 1.8 t/day | 2.1 t/day |
| Typical business type | Small shop | Growing shop | Shop + workshop |
| Relative batch class | Entry | Medium | Larger |
| Investment level | Lower | Moderate | Medium-high |
If you already expect stronger daily demand, compare KHOP-15KG and KHOP-20KG.
Procurement, FAT/SAT, and service scope
The manufacturer quotation should list the machine version, voltage and frequency, contact materials, guards and control items, accessories, packing, freight and tax exclusions, delivery time, spares, warranty, and after-sales response channels. Factory acceptance testing (FAT) and site acceptance testing (SAT) are separate agreed scopes. Remote support and any on-site commissioning or training are supplied only when the written quotation and contract confirm the region, travel, visas, lodging, fees, duration, work content, buyer-provided utilities, and acceptance responsibilities; unlisted services are not included.
